CW-1

model type Bass reflex
Power rating 450W (RMS)
Power amplifier 3000W(RMS), with DSP digital processor
/4*1000W(RMS) , with DSP digital processor
Frequency response 32 Hz - 150 Hz (-6dB)
Max SPL 130 dB
Transducers 1 x 12"
input interface Gold-plated push terminals (passive version)
Dimensions 450Hx420Wx418D (mm)
Weight 28 kg
Panel material 18mm birch plywood
Painted Black environmentally friendly water-based paint

Tel: 020-34882578

E-mail:sale@hzaudio.com

Description

model type Bass reflex

Power rating 450W (RMS)

Power amplifier 3000W(RMS), with DSP digital processor

/4*1000W(RMS) , with DSP digital processor

Frequency response 32 Hz - 150 Hz (-6dB)

Max SPL 130 dB

Transducers 1 x 12"

input interface Gold-plated push terminals (passive version)

Dimensions 450Hx420Wx418D (mm)

Weight 28 kg

Panel material 18mm birch plywood

Painted Black environmentally friendly water-based paint

Features

CW-1 High Power Subwoofer

For a theater with a small space, your subwoofer system should have the following characteristics:

1. Small size: In limited venue space, the subwoofer system needs to have a small and compact volume for easy placement and installation with out taking up too much venue space.

2. Low frequency lower limit: In order to meet the large dynamic needs of digital movies, the subwoofer system theoretically needs to have a frequency lower limit lower than 20Hz to present deep low frequency effects. However, the performance of low frequency sound effects in a small space will be limited by the physical size of the wavelength. In addition, if the very low low frequency lower limit is not fully driven and effectively controlled, the resulting sound will be low and weak and dragged. Therefore, the subwoofer system needs to have a suitable low frequency lower limit, and excessive pursuit is not optimal. choose.

3. Low distortion: In order to obtain the best sound quality performance, the subwoofer system must have a very low distortion level to achieve pure sound.

4. Strong power reserve: The subwoofer system has sufficient power reserve, which is a necessary guarantee to ensure pure and stable low-frequency output under large dynamics.

5. Quick response: The muddy and muddy low frequency is not acceptable in any case, so the subwoofer system should be able to respond to the audio signal quickly to maintain the clarity and accuracy of the sound.

6. High power: It comes with a high-power active module with DSP, and can easily build a 2.1 system describe

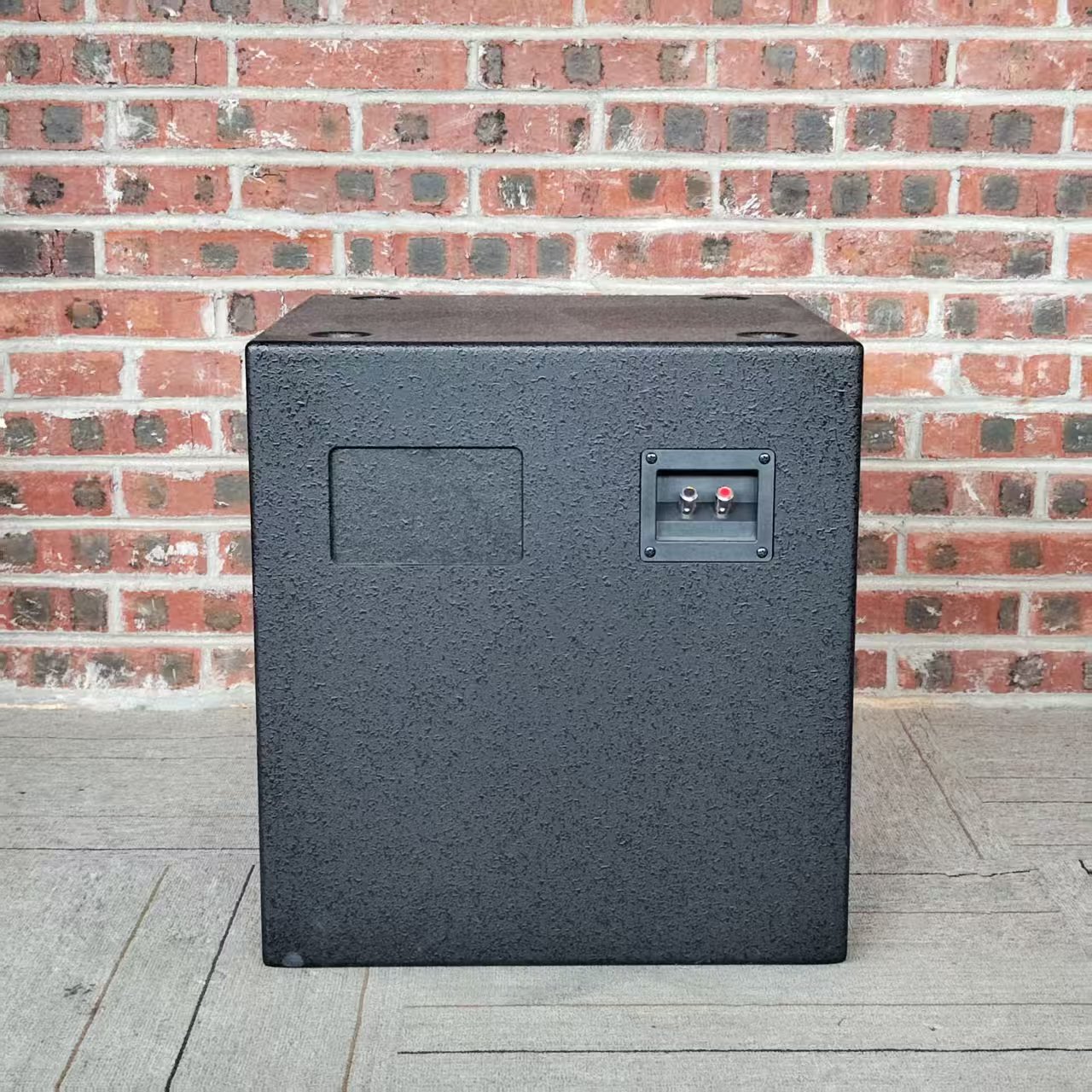

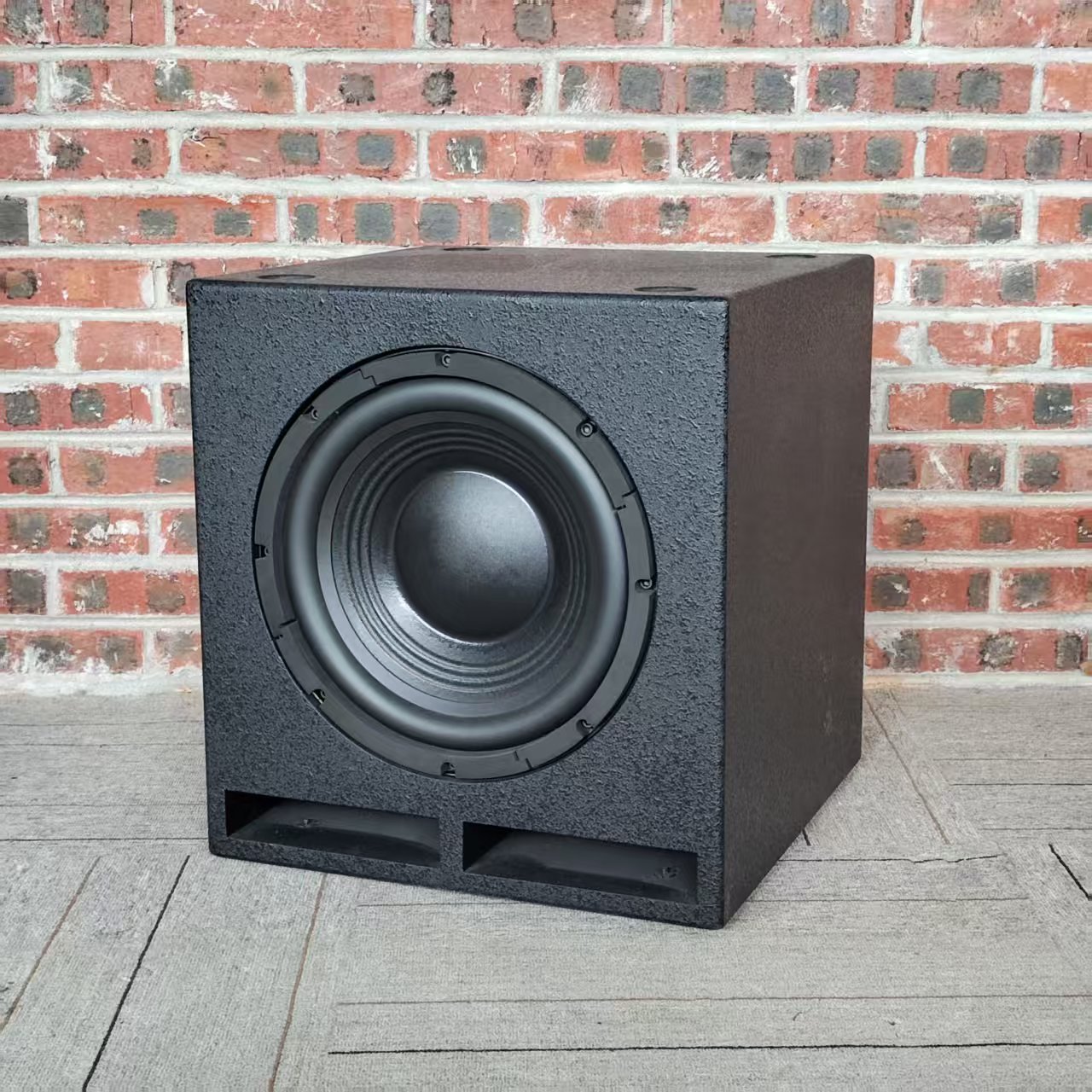

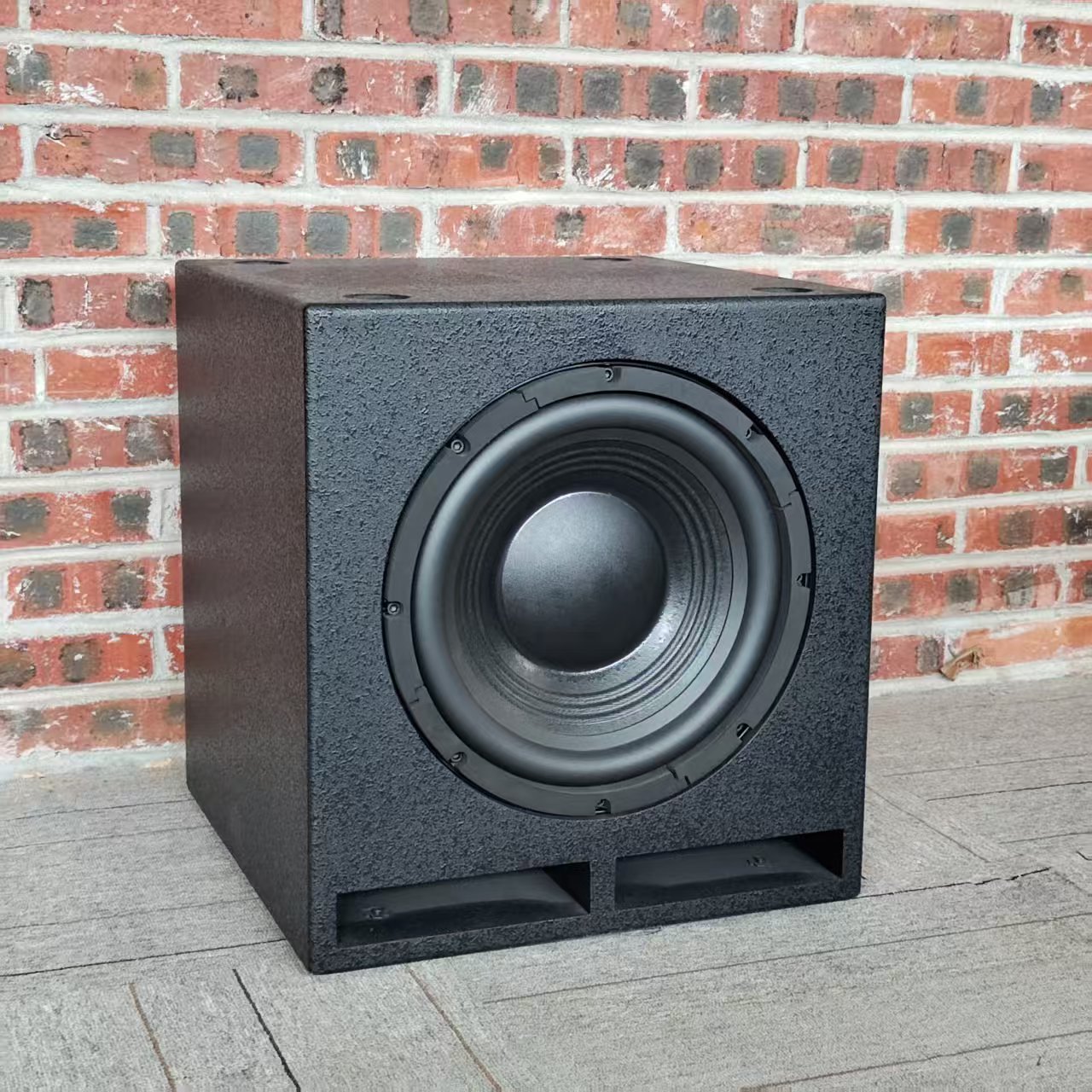

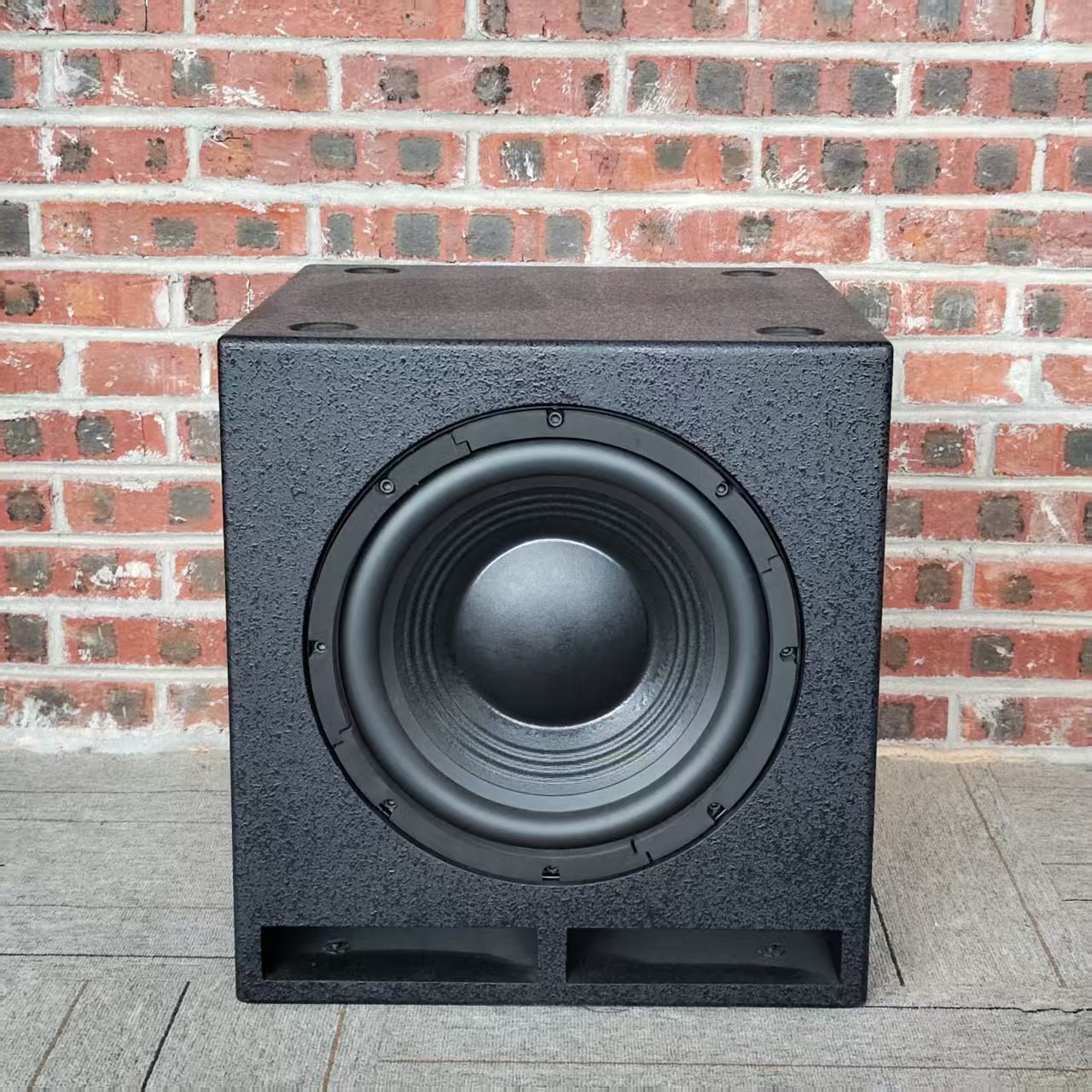

The CW-1 is a compact high-power active subwoofer with a bass-reflex design for fixed installations.

The 4-inch large diameter voice coil with high compliance and low distortion 12-inch rubber suspension edge bass drive unit is the result of extensive and in-depth research on each component of the speaker unit. It not only has excellent sound performance, but also has excellent thermal performance. Stability, to meet the needs of long-term high-power work, with a large linear amplitude equivalent to an 18-inch woofer, driving a large amount of air to produce thunderous and shocking low-frequency sound waves.

The small size of the CW-1 cabinet can be easily installed behind the sound-transmitting screen of the theater,in a corner of a family living room or commercial restaurant, or a high-end clu b, minimizing space occupation.

CW-1 has a 3000W high-power module with DSP, and there is also a special version CW-1 F, which has two more power amplifier outputs for driving full-range speakers, and also has DSP to form a 2.1 full-range system.
