Description

Speaker type 12INCH FULL RANGE LOUDSPEAKER

Power rating 300W

Frequency response 75 Hz-19 kHz (-6dB)

Nominalimpedance 160

Max SPL 138 dB

Directivity 90 x 1-12

Dimensions H255xW630xD375 (mm)

Weight 21 kg

Transducers 2 x 8" bass cone drivers

2.5" voice coil neodymium compression drivers

input interface N L4M P*2

Panel material birch plywood

Painted Black polyurea coatings

Features

FC-82 dual eight-inch full-band line array

For sound reinforcement in small venues, point source speakers are often used, and the number needs to be increased if higher sound pressure is required. But how can multiple speakers be installed and combined to achieve effective coupling and achieve the sound pressure superposition we need? This seemingly simple problem has not had a real effective solution until today, because point sound source speakers radiate sound with spherical waves, and when two or more speakers are combined together, they will interfere with each other and form cancellations at different frequencies. The original flat frequency response becomes bumpy and undulating, and varies with different listening positions, which seriously reduces the sound quality and cannot achieve the expected value of 1+1=2.

It is not a good solution to increase the sound pressure output by combining multiple point source speakers!

Even if it is a single point sound source speaker, although there is no problem of mutual interference, due to its too wide and irregular sound radiation characteristics, it produces sound scattering in the vertical direction that exceeds our expected range, which leads to the sound energy generated by the speaker not being fully projected To the audience area, and there are quite a lot of sound scattered to the ceiling and the ground, as well as the side walls, which we do not want to project to, which will generate a lot of reflections from all sides, disturb the audience area, and reduce the sound Cla rity.

Renovating the acoustic environment of the hall can improve this problem, but it is a large project that many owners are unwilling to invest in. Even if they are willing to spend money, it is difficult to obtain satisfactory results.

Solutions

We can fix this with better sound system design.

Use line array speakers with constant directivity to form a vertical array as long as possible to form a very narrow vertical sound beam. The more speakers (the longer the array), the narrower the vertical sound beam, the more concentrated the sound projection, and the vertical sound field. The better the control, the more the sound scattered to the ceiling and the ground can be greatly reduced, the interference of reflected sound can be reduced, the Cla rity of the sound can be maximized, and the sound can be projected to the audience area more.

Obviously, from a technical point of view, the application of a line array system can improve the efficiency and sound clarity of sound reinforcement, but from an economic point of view, this will bring about budgetary cost problems, but small venues usually do not need Too much system power, therefore, reducing the cost of a single speaker by reducing the individual power specifications of the line array speakers can balance the system quality and the total cost.

Design

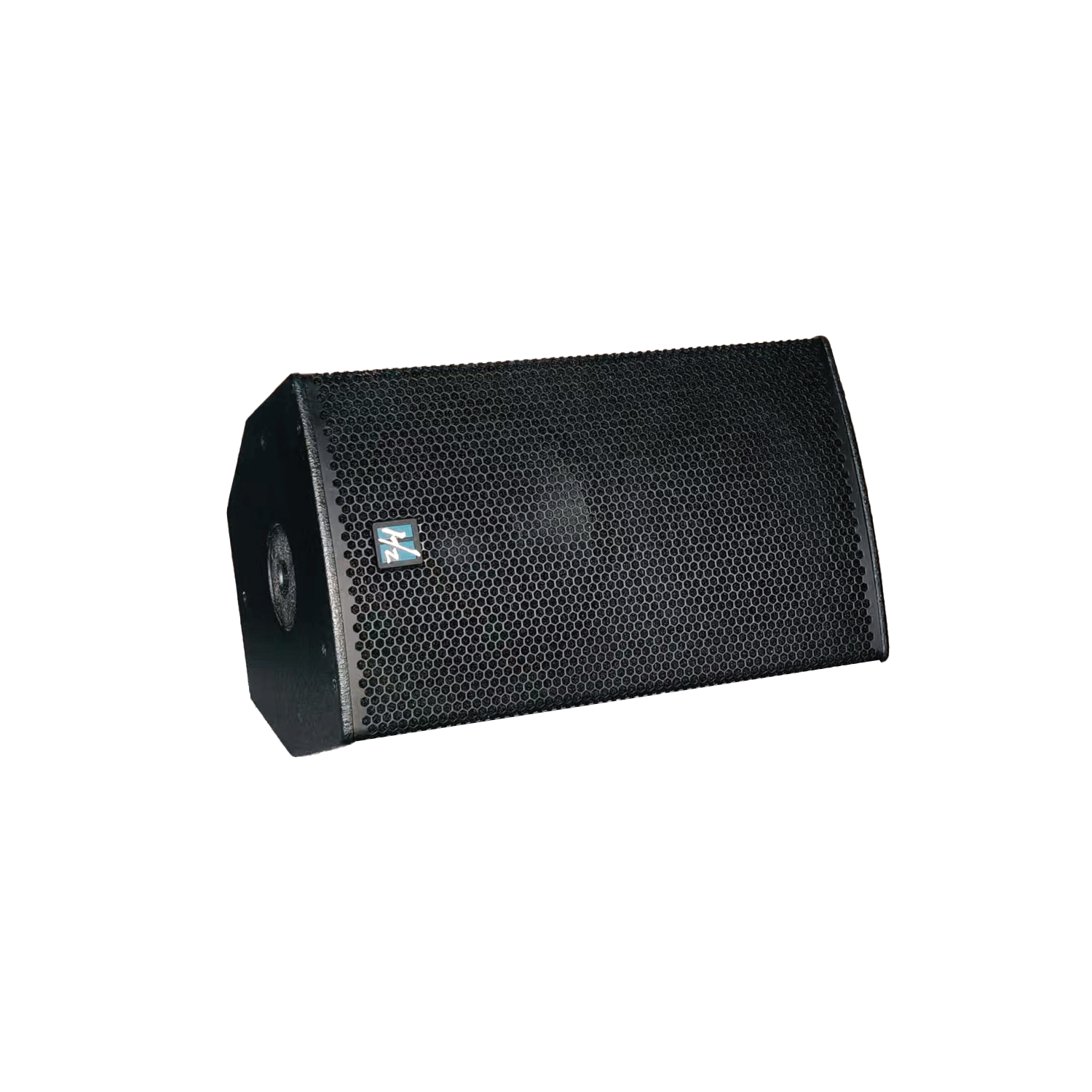

The FC-82 is designed for smaller venues where high quality, high definition sound is desired.

Different from Hzaudio's other line array systems that pursue the maximization of unit power, FC-82 0nly pursues sound quality and sound field coverage level, and does not pursue excessive power. It minimizes the cost while meeting power requirements, and realizes effective cost control. .

The FC-82 consists of two rubber-rimmed 8" cone low-frequency drivers, a 2.5' voice coil neodymium compression high-frequency driver, connected to a wave converter that has undergone precise acoustic path correction, and the tweeter and bass drivers are combined in a coaxial structure Installation, built-in crossover network with phase optimization design, forming a horizontal 80-degree constant directional cylindrical radiation wave, supporting a special DSP control program to achieve the best acoustic performance.

FC-82 applies constant beam control technology, uniform off-axis response, forms a uniform sound field coverage, and keeps it as low as 500 Hz, which can avoid the configuration of various fill speakers to the greatest extent.

The FC-82 can be installed quickly and conveniently through the magnetic suspension system that can be quickly installed.

The vertical opening angle can be adjusted between 0-12 degrees in increments of 2 degrees.

The solid birch plywood cabinet is sprayed with environmentally friendly water-based paint on the surface, and the sturdy perforated steel plate is backed with sound-permeable sponge to prevent dust and water droplets from splashing.
