CMS-2

Speaker type Two-way bass-reflex speakers
Rated power 100W
Frequency response 60 Hz-19k Hz (-6dB)
Nominallmpedance 8Ω
sensitivity 93 dB (1W/1m)
SPL Continuous 114 dB
Max SPL 120 dB
Radiation angle 100 (H x V)
Size see picture
Weight 7.5 kg
Transducers 6.5-inch woofer
34mm diaphragm compression driver coaxial unit.
Input interface Press terminal
Cabinet material 12mmbirch plywood
Surface treatment Black environmental protection water-based paint

Tel: 020-34882578

E-mail:sale@hzaudio.com

Description

Speaker type Two-way bass-reflex speakers

Rated power 100W

Frequency response 60 Hz-19k Hz (-6dB)

Nominallmpedance 8Ω

sensitivity 93 dB (1W/1m)

SPL Continuous 114 dB

Max SPL 120 dB

Radiation angle 100 (H x V)

Size see picture

Weight 7.5 kg

Transducers 6.5-inch woofer

34mm diaphragm compression driver coaxial unit.

Input interface Press terminal

Cabinet material 12mmbirch plywood

Surface treatment Black environmental protection water-based paint

Features

CMS-2 Multipurpose speaker

The ideal theater speaker configuration is to use the same type of speakers for the left, center, right and surround channels to achieve consistent sound performance. However, in practical applications, due to the space environment and cost, small-sized speakers are usually used to play Surround sound channels, but the small-sized surround speakers cannot play the main channel due to power reasons, so the left, middle and right main channels can only be used for large speakers.

In addition to watching movies, we also want to use a sound system to listen to music and sing, but most speakers cannot meet these application requirements at the same time. In addition to increasing the investment of money, adding a set of singing equipment also takes up more indoor space and affects the vision. perception.

We hope to fulfill all those functions with small speakers, add subwoofer to further achieve perfect sound performance, and build the system in the simplest and no-technical way.

describe

CMS-2 is designed to meet people's all-round needs.

This high-energy coaxial speaker unit is composed of a heavy-duty magnetic circuit woofer and a 34mm compression tweeter driver with a bandwidth exceeding 20kHz, which has excellent acoustic performance. It is designed to provide unrivaled penetration and easily resist high-frequency loss caused by transparent sound cu rtains, thereby maintaining clarity and detail. The mid-frequency vocals are excellent, and it also has a specially designed shape and a large enough reserve power to meet the needs of surround and left, center and right channels. In addition, it also has an exciting performance of excellent microphone singing.

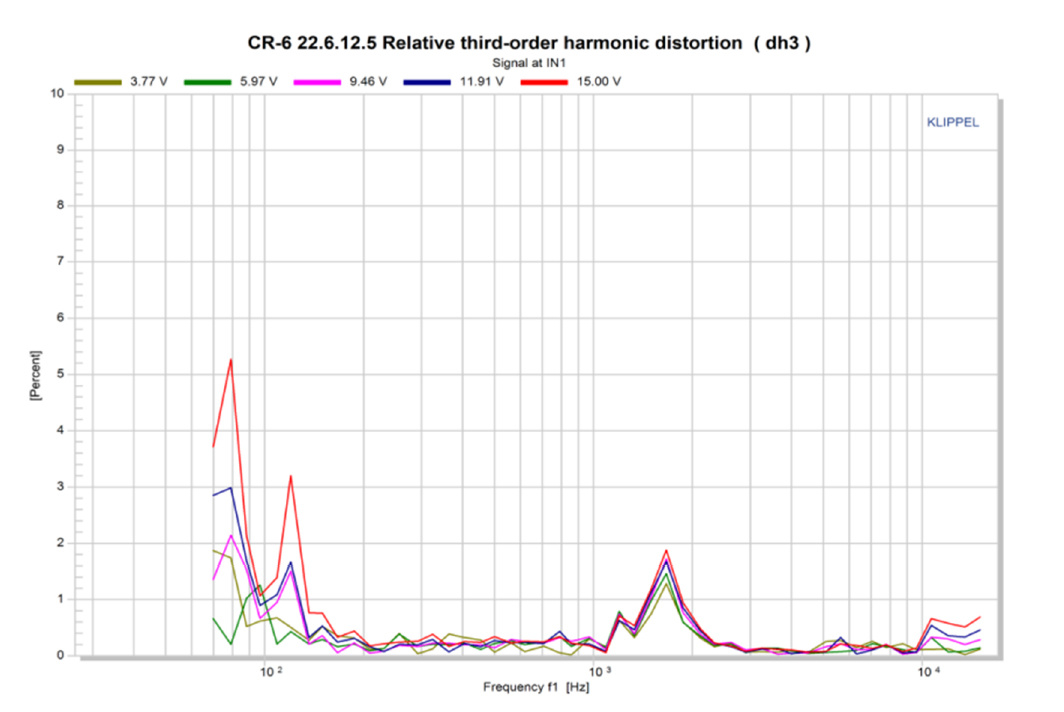

The third harmonic distortion as low as 0.3% on average is an important guarantee for its sound quality.

application

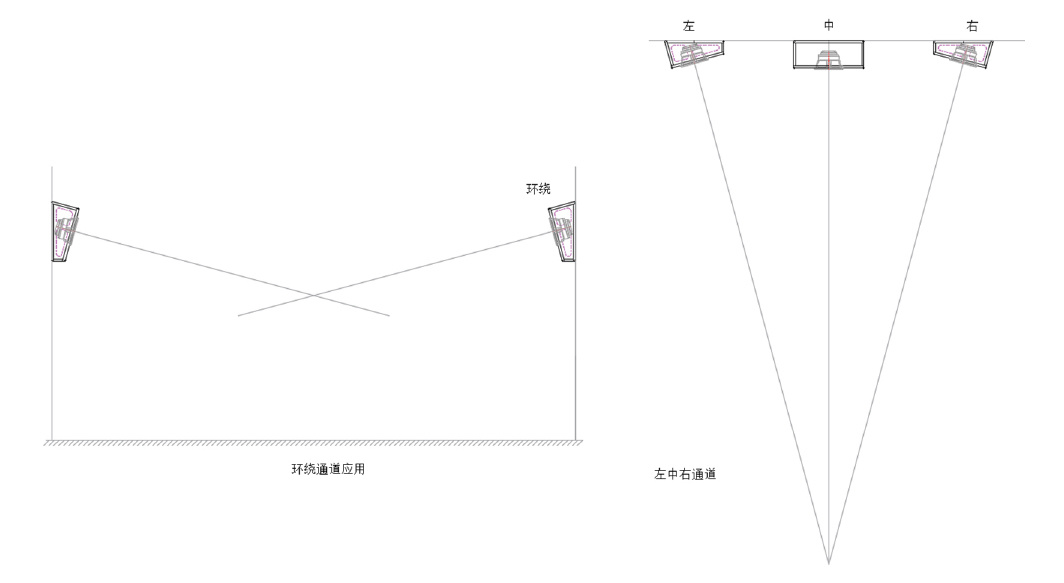

In a room of about 2-30 square meters, it is responsible for the left, center, right main and surround channels,or in a larger room for the surround sound channels. By rotating the placement angle of the cabinet, the conversion of three different functions in the surround channel and the left, middle and right channels can be realized.

CMS-2's full and bright sound and power handling ability also have excellent performance for background music in public commercial places such as restaurants and sound reinforcement in small meeting rooms and classrooms.
