EL-6
Product Category:
Key word:
EL-6
EL-6
Power rating (RMS)： 240W
Frequency response： 90 Hz-18 kHz (-6d B)
Nominal impedance：12Ω
Sensitivity： 94dB (1W/1m)
SPL Continuous： 118 dB
Max SPL： 124 dB

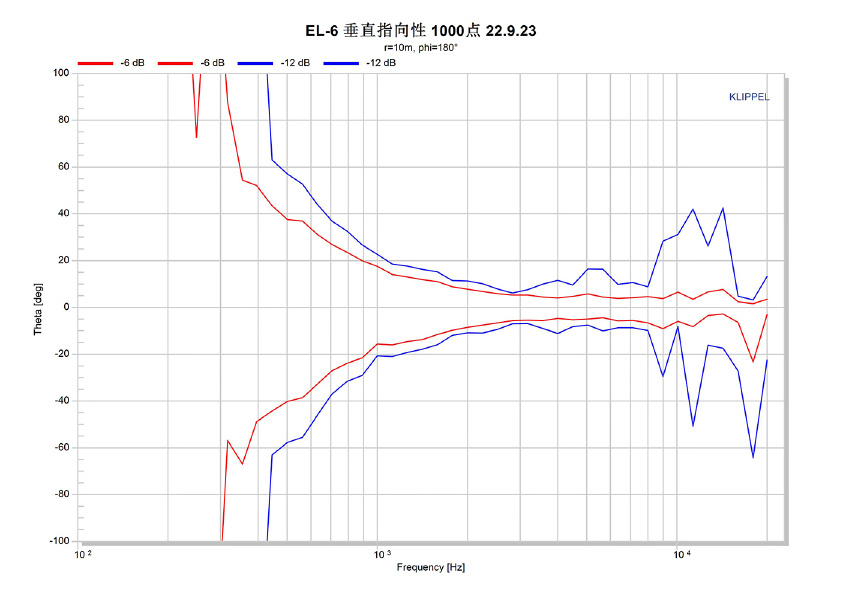

Directivity：100 x 20 (H x V)
Transducers： 6 x 4"
Dimensions (mm)： H690 x W150 x D220
Weight： 8 kg
Panel material： 12mm birch plywood
Painted： Black environmentally friendly water-based paint
Description
Power rating (RMS)： 240W
Frequency response： 90 Hz-18 kHz (-6d B)
Nominal impedance：12Ω
Sensitivity： 94dB (1W/1m)
SPL Continuous： 118 dB
Max SPL： 124 dB
Directivity：100 x 20 (H x V)
Transducers： 6 x 4"
Dimensions (mm)： H690 x W150 x D220
Weight： 8 kg
Panel material： 12mm birch plywood
Painted： Black environmentally friendly water-based paint
Features
The column sound system needs to solve the contradiction between volume power and bandwidth!
Design of EL-6
EL-6 is a 4-inch mid-diameter speaker unit design, which can better solve the problem of thin mid-low frequency that usually exists in small-diameter sound columns.
Through the investment of new technology, the speaker unit with 25mm voice coil can be used more efficiently, producing brighter and denser sound,which meets the needs of on-site applications.

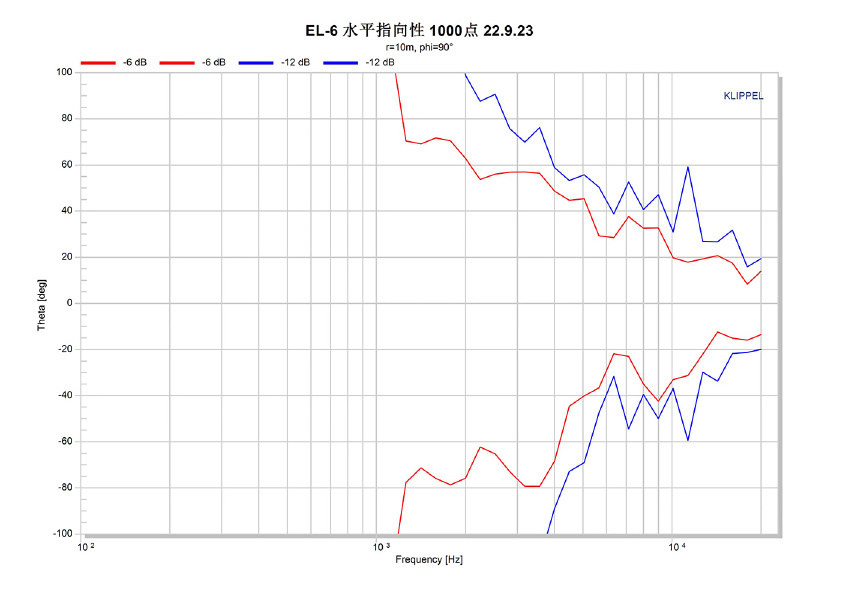

The inherent clustering effect of the cone-shaped speaker unit makes the sound radiation angle gradually narrow as the frequency increases, resulting in narrowing of the high-frequency sound column radiation in the horizontal direction. The constant directivity cross structure design of the EL-6 makes the high-frequency sound column The horizontal radiation angle achieves 1 00-degree constant directivity control, effectively controlling the horizontal
EL-6 balances volume, power and high frequency extension very well!
 |
 |
Applications
- Portable sound reinforcement
- Live music clubs
- Bars and restaurants
- Corporate AV events and conferences
- Weddings and parties
- Schools
Cases
Datasheet
