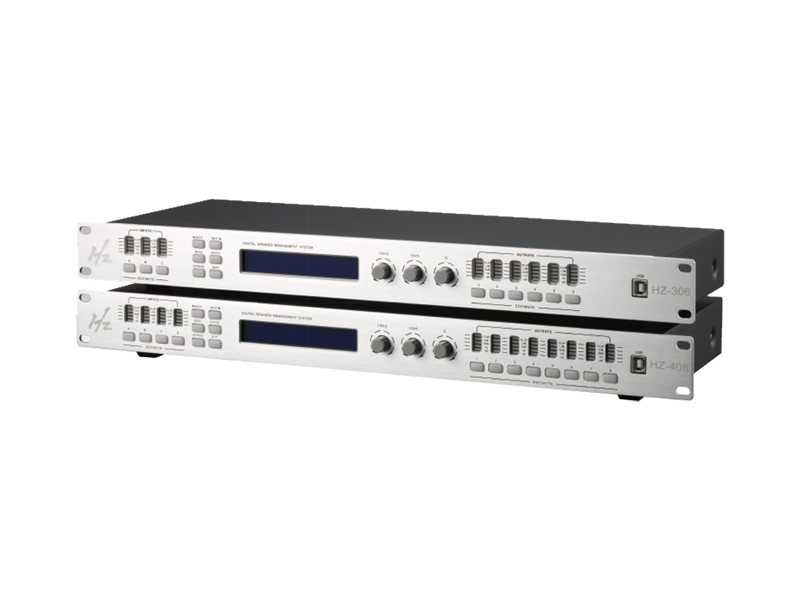

HZ-306
3 input channels, 6 0utput channels
Scene restoring digital echo effect
High Performance 32 bit analog converter
Per output channel：8 EQs
Per output channel：voltage limiter
Per output channel：multi-mode filter
Per output channel：pola rity switchable
Input/output channel isolated delay
up to 20 APPs storage allowed
Realize controlling and adjustment of parameter through computer software
Unit of parameter convertible
HZ-408
4 input channels, 8 0utput channels
Scene restoring digital echo effect
High Performance 32 bit analog converter
Per output channel：8 EQs
Per output channel：voltage limiter
Per output channel：multi-mode filter
Per output channel：pola rity switchable
Input/output channel isolated delay
Up to 20 APPs storage allowed
Realize controlling and adjustment of parameter through computer software
Unit of parameter convertible

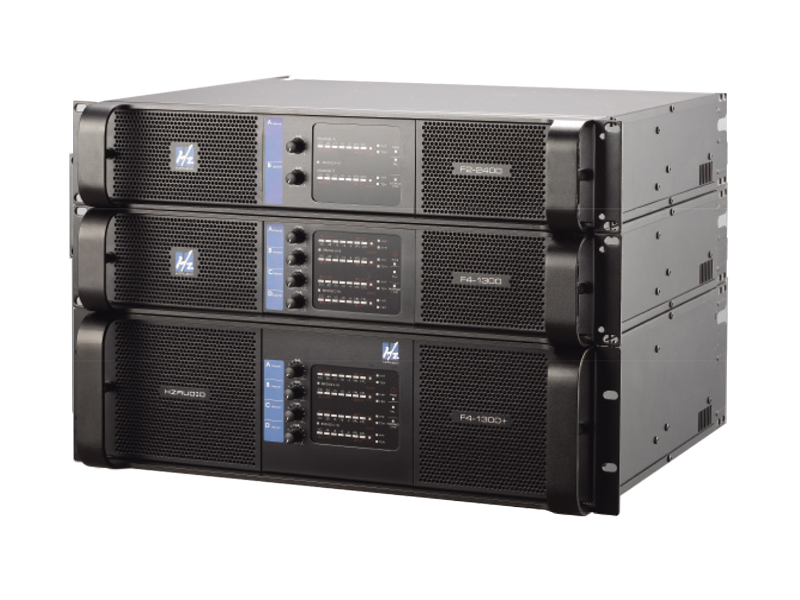

F2-2400
Channels：2 Channels
8Ω Per Channel Output：2350 W
4Ω Per Channel Output：4400 W
2Ω Per Channel Output：7000 W
4Ω Per Channel-in-Pair Bridging Output：14000 W
Frequency Response(1W,8Q,+0/-35dB)：20 Hz-35 kHz
Total Harmonic Distortion(8Ω,20Hz-20KHz)：< 0.1%
Total Harmonic Distortion(80 Power Below Clipping ldB,20Hz-20KHz)：< 0.05%
Slew Rate：45 V/us
Damping Coefficient(100Hz)： >400:1
Signal/Noise Ratio：112 dBA
Stereo Crosstalk：>85 dB
Input Impedance：20KΩ Balanced Input,10KΩ Unbalanced
F4-1300
Channels：2 Channels
8Ω Per Channel Output：1300 W
4Ω Per Channel Output：2100 W
2Ω Per Channel Output：2500 W
4Ω Per Channel-in-Pair Bridging Output：5000 W
Frequency Response(1W,8Q,+0/-35dB )：20 Hz-35 kHz
Total Harmonic Distortion(8Ω,20Hz-20KHz)：< 0.1%
Total Harmonic Distortion(80 Power Below Clipping ldB,20Hz-20KHz)：< 0.05%
Slew Rate：30 V/us
Damping Coefficient(100Hz)：>200:1
Signal/Noise Ratio：112 dBA
Stereo Crosstalk：>85 dB：
Input Impedance：20KΩ Balanced Input,10KΩ Unbalanced
F4-1300+
Channels：2 Channels
8Ω Per Channel Output：1300 W
4Ω Per Channel Output：2100 W
2Ω Per Channel Output：2500 W
4Ω Per Channel-in-Pair Bridging Output：5000 W
Frequency Response ( 1W,8Ω , +0/-35dB )：20 Hz-35 kHz
Total Harmonic Distortion(8Ω,20Hz-20KHz)：< 0.1%
Total Harmonic Distortion(80 Power Below Clipping ldB,20Hz-20KHz)：< 0.05%
Slew Rate：30 V/us
Damping Coefficient(100Hz)：>200:1
Signal/Noise Ratio：112 dBA
Stereo Crosstalk：>85 dB
Input Impedance：20KΩ Balanced Input,10KΩ Unbalanced
UM-4600
Detailed parameters：8Ω:600W x 4,4Ω:900W x 4
Frequency Response：20 Hz-20k Hz(+0/-0.5dB)
Total Harmonic Distortion：<0.05%
Signal/Noise Ratio：> 96dB
Damping Coefficient：>300
Stereo Crosstalk：> 60dB
Slew Rate：>12V/us
Input Sensitivity：0.775V/1.0V/32dB
Input Impedance：20kΩ/10kΩ
Input Gain Range：38.20dB
model：Air flow from front to rear

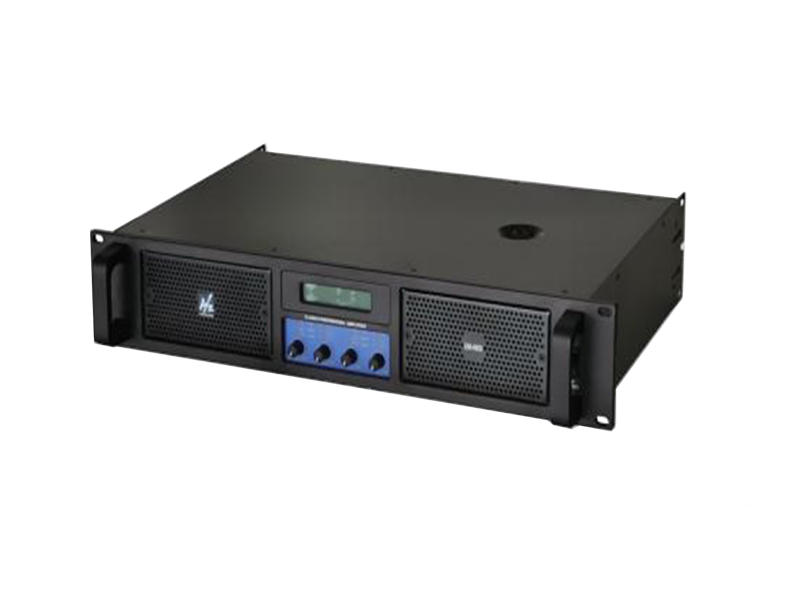

UM-4800
Detailed parameters：800Wx4/8Ω, 1200Wx4/4Ω
Frequency Response：20 Hz-20k Hz(+0/-0.5dB)
Total Harmonic Distortion：<0.05%
Signal/Noise Ratio：> 96dB
Damping Coefficient：>300
Stereo Crosstalk：> 60dB
Slew Rate：>12V/us
Input Sensitivity：0.775V/1.0V/32dB
Input Impedance：20kΩ/10kΩ
Input Gain Range：38.20dB
model：Air flow from front to rear

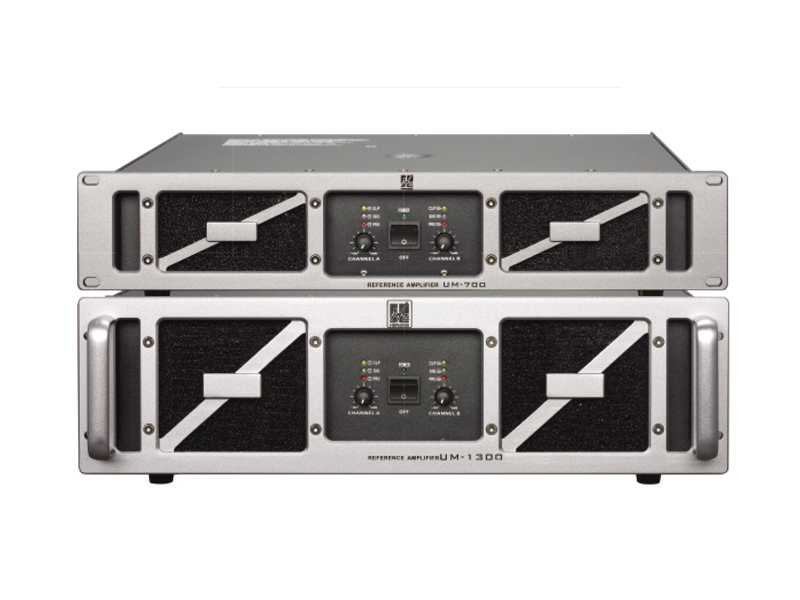

UM-700
20 Hz-22 kHZ @01%THD
8ΩPerChannelOutput：650W
4Ω PerChannelOutput：780W
8Ω Bridged-Mono Output：1170W
4Ω Bridged-MonoOutput：1560W
Distortion Factor：<0.1%
Frequency Response(1W,8Ω+0/-1dB )：20Hz-20kHz
Attenuation Factor：>300@8Ω
Unweighted(20Hz-20kHz)：-100dB
Gain：56X
Input Sensitivity V RMS(@8Q)：0dB,1V3dB
Input Impedance：10kΩ( unbalanced)
20kΩ(balanced
UM-900
20 Hz-22 kHZ @01%THD
8ΩPerChannelOutput：850W
4Ω PerChannelOutput：1020W
8Ω Bridged-Mono Output：1530W
4Ω Bridged-MonoOutput：2040W
Distortion Factor：<0.1%
Frequency Response(1W,8Ω+0/-1dB)：20Hz-20kHz
Attenuation Factor：>300@8Ω
Unweighted( 20 Hz -20k Hz)：-100dB
Gain：56X
Input Sensitivity V RMS (@8Ω )：0dB,1V3dB
Input Impedance：10kΩ(unbalanced)
20kΩ(balanced)
UM-1000
20 Hz-22 kHZ @01%THD
8ΩPerChannelOutput：1000W
4Ω PerChannelOutput：1280W
8Ω Bridged-Mono Output：1900W
4Ω Bridged-MonoOutput：2250W
Distortion Factor：<0.1%
Frequency Response(1W,8Ω+0/-1dB )：20Hz-20kHz
Attenuation Factor：>300@8Ω
Unweighted(20Hz-20kHz)：-100dB
Gain：66X
Input Sensitivity V RMS(@8Ω )：0dB,1V3dB
Input Impedance：10kΩ( unbalanced)
20kΩ(balanced)
UM-1300
20 Hz-22 kHZ @01%THD
8ΩPerChannelOutput：1300W
4Ω PerChannelOutput：1650W
8Ω Bridged-Mono Output
4Ω Bridged-MonoOutput
Distortion Factor：<0.1%
Frequency Response(1W,8Ω+0/-1dB)：20Hz-20kHz
Attenuation Factor：>300@8Ω
Unweighted( 20 Hz -20k Hz)：-100dB
Gain：90X
Input Sensitivity V RMS(@8Ω )：0dB,1V3dB
Input Impedance：10kΩ( unbalanced)
20kΩ(balanced)
