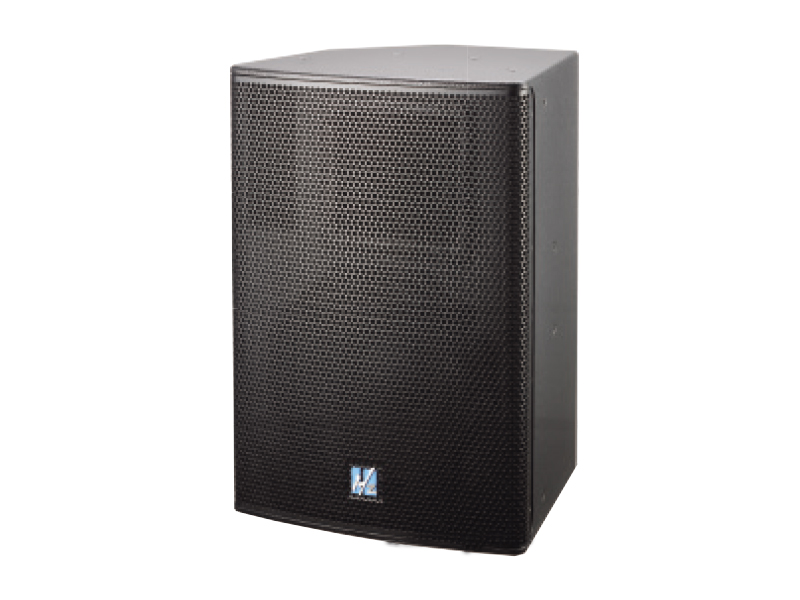

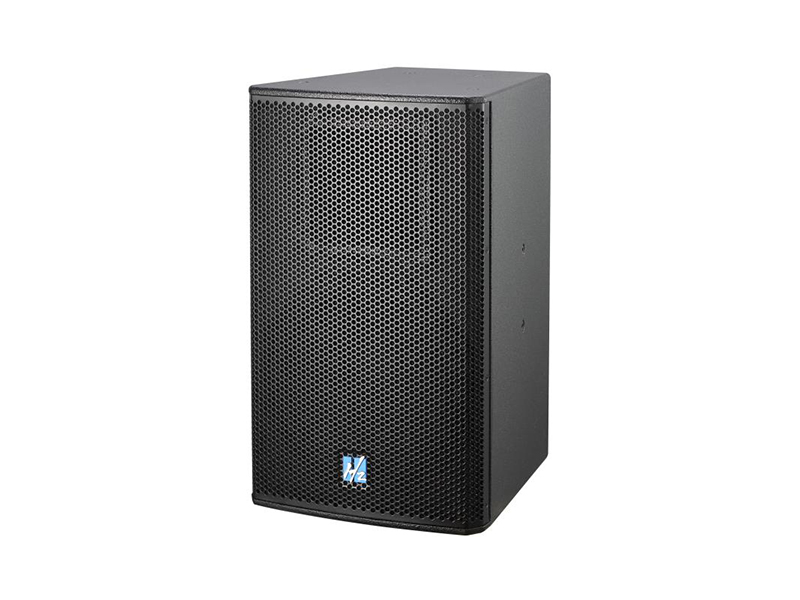

Speaker type：12 inch two-way

Rated power：350W(RMS)

Frequency response：60Hz-20kHz (-6db)

Components：3" voice coil 12" cone bass driver, 1.75" voice coil compression tweeter driver

Nominal Impedance：8Ω

Max SPL：124db

Radiation angle：80x+20,-45(H x V)

Size：745H×445W×390D(mm)

Weight：38kg

Input interface：NL4MP*2

Cabinet material：15mm birch plywood

Surface treatment：Black waterproof and wear-resistant polyurea paint

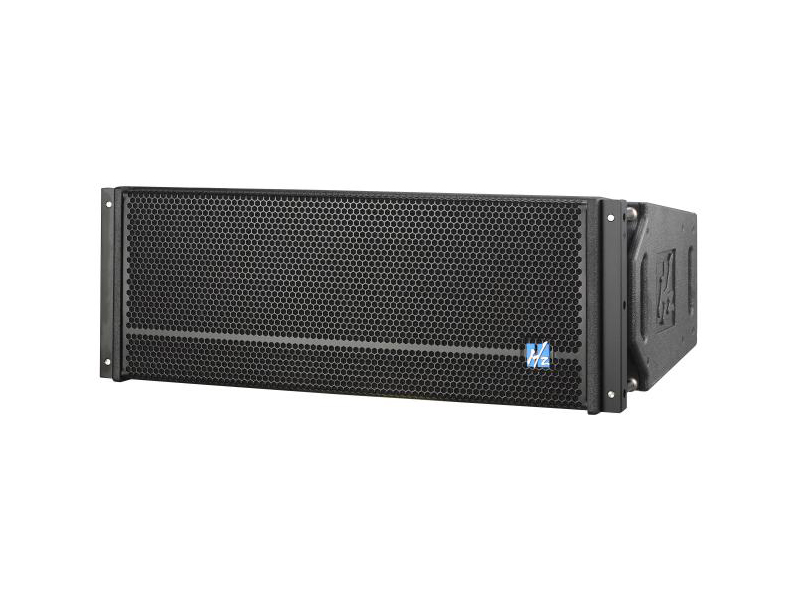

speaker type：Dual 10-inch three-way line array speakers (Built-in precise phase crossover network)

rated power：900W RMS

bandwidth：50HZ-18kHz (-6db)

Nominal impedance：8Ω

Max SPL：145dB

Directivity：80 x 1-12

Size：313×860×465 (Ht×W×D)(mm)

weight：39.5 kg

Transducers：LF: 10" neodymium cone driver x 2 with 3" voice coil, MF: Horn-loaded 2.5" voice coil 8" neodymium driver x 1 HF: 3" voice coil pure titanium diaphragm

Input interface：neodymium magnetic compression driver x 2

Cabinet material：NL4MP*2

Surface treatment：15mm birch plywood black polyurea paint

Power rating (RMS)：400W

Frequency response：33 Hz -1 30 Hz (-6dB)

Nominal impedance：8Ω

Sensitivity：96 dB

SPL Continuous：122 dB

Max SPL：128 dB

Directivity：100 x 20 (H x V)

Transducers：1 x 15"

Dimensions(mm)：H745 x W445 x D505

Weight：32kg

Panel material：15mm birch plywood

Painted：Black environmentally friendly water-based paint

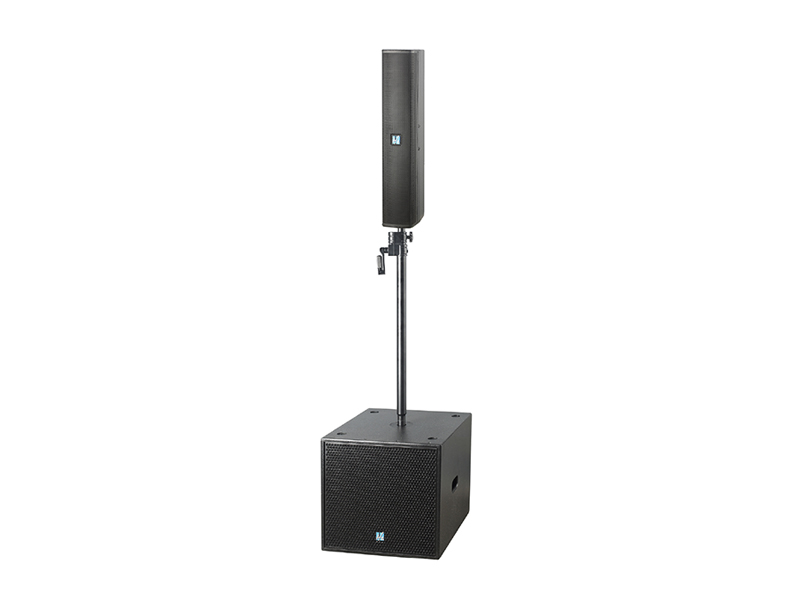

Power rating (RMS)：240W

Frequency response：90 Hz-18 kHz (-6d B)

Nominal impedance：12Ω

Sensitivity：94dB (1W/1m)

SPL Continuous：118 dB

Max SPL：124 dB

Directivity：100 x 20 (H x V)



Transducers：6 x 4"

Dimensions(mm)：H690 x W150 x D220

Weight：8 kg

Panel material：12mm birch plywood

Painted：Black environmentally friendly water-based paint

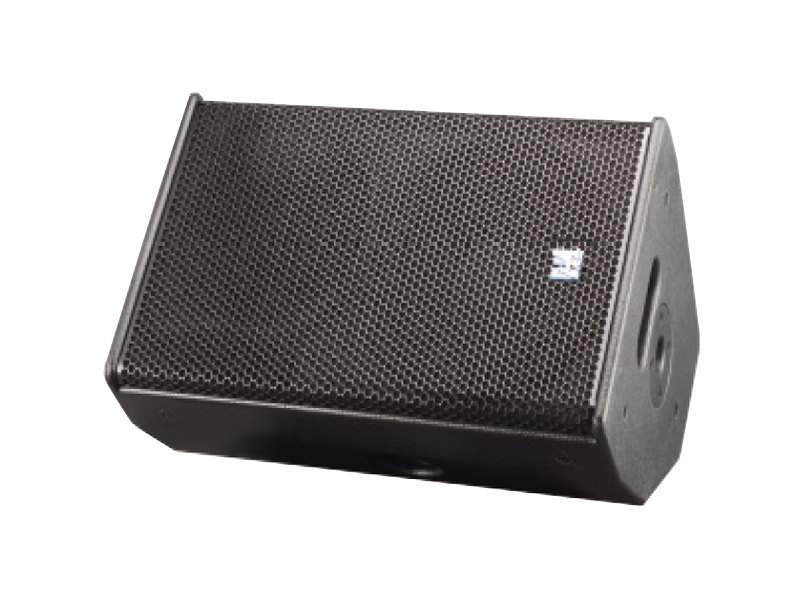

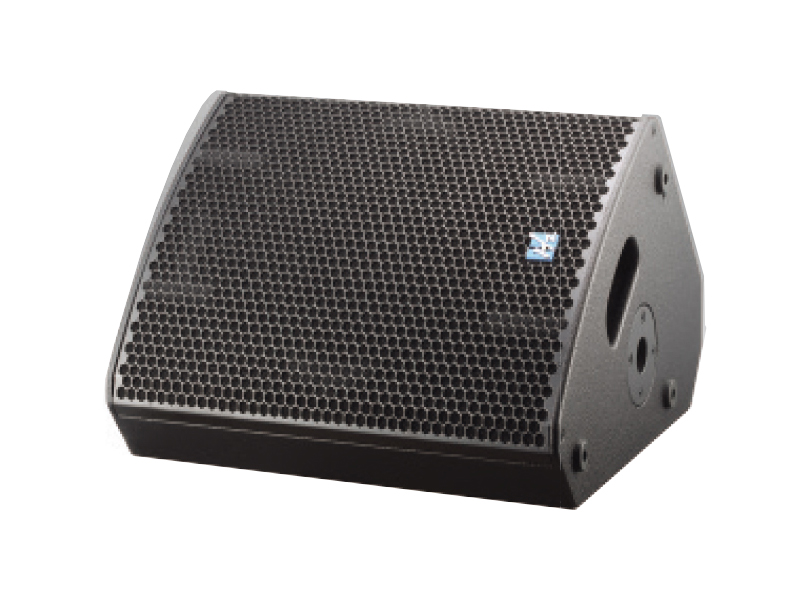

Components：15"Coaxial Stage Monitor Speaker

Rated Power：500 W

Frequency Response：60 Hz-19 kHz

Nominallmpedance：8Ω

Sensitivity：99 dB (1W/lm)

SPL Continuous：126 dB

SPL Max lW @ Im：132 dB

Dispersion：50 x 70 (HxV)

Dimensions(mm)：440x600x385.5 (H xWx D)

Weight：22 kg

Cabinet Material：15mm Birch Plywood

Coating：Polyurea

Components：Single 15'Full Range Monitor Spea ker

Rated Power：450 W

Frequency Response：45 Hz-18 kHz

Nominallmpedance：8Ω

Sensitivity：97 dB (1W/lm)

SPL Continuous：124 dB

SPL Max lW @ Im：130 dB

Dispersion：60x40 (HxV)



Dimensions(mm)：717x442x363 (HxWxD)

Weight：38 kg

Cabinet Material：18mm Birch Plywood

Coating：Polyurea / Water Paint

Components：12'Stage Monitor Speaker

Rated Power：300 W

Frequency Response：50 Hz-17 kHz

Nominallmpedance：8Ω

Sensitivity：96 dB (1W/lm)

SPL Continuous：121 dB

SPL Max lW @ Im：127 dB

Dispersion：90x40 (HxV)

Dimensions(mm)：373x574x378 (HxWxD)

Weight：25 kg

Cabinet Material：15mm Birch Plywood

Coating：Water Paint

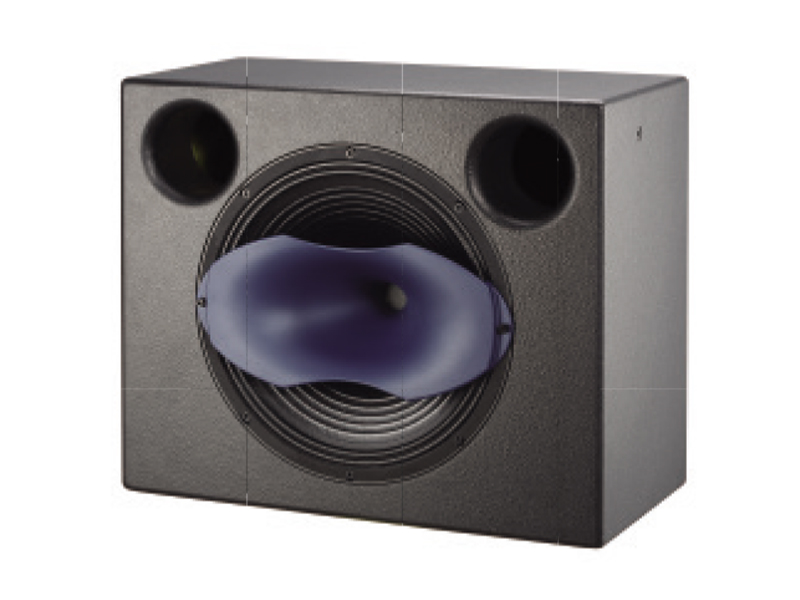

Rated Power：500 W

Frequency Range：60 Hz-19kHz

Nominallmpedance：8Ω

Sensitivity：99 dB(1W/1m)

Calculated Output：126 dB

SPL Max：132 dB

Dispersion：90x70(HxV)

Dimensions(mm)：500x600x300 (HxWx D)

Weight：23 kg

Cabinet Material：15mm Birch Plywood

Coating：Water based paint (black)

Speaker type：Two-way bass-reflex speakers

Rated power：100W

Frequency response：60 Hz-19k Hz (-6dB)

Nominallmpedance：8Ω

sensitivity：93 dB (1W/1m)

SPL Continuous：114 dB

Max SPL：120 dB

Radiation angle：100 (H x V)

Size：see picture

Weight：7.5 kg

Transducers：6.5-inch woofer,34mm diaphragm compression driver coaxial unit.

Input interface：Press terminal

Cabinet material：12mmbirch plywood

Surface treatment：Black environmental protection water-based paint

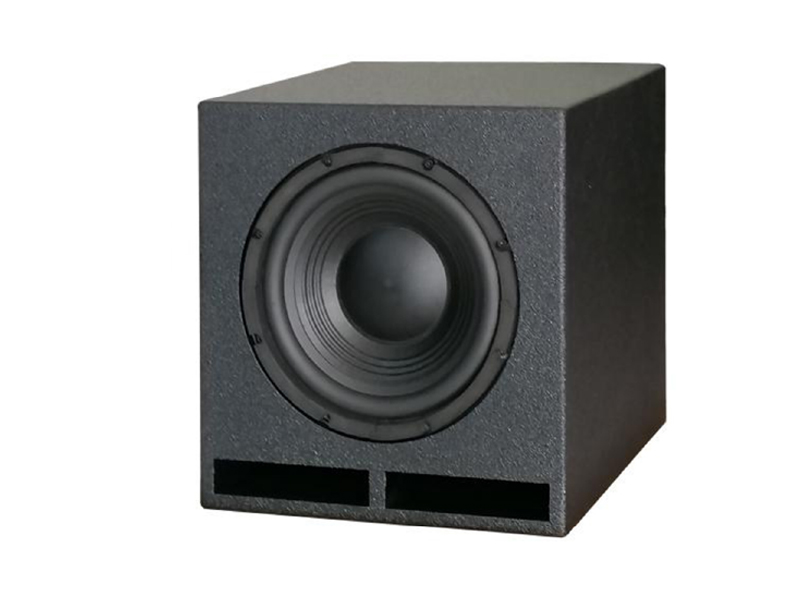

model type：Bass reflex

Power rating：450W (RMS)

Power amplifier：3000W(RMS),with DSP digital processor /4*1000W(RMS),with DSP digital processor

Frequency response：32 Hz - 150 Hz (-6dB)

Max SPL：130 dB

Transducers：1 x 12"

input interface：Gold-plated push terminals (passive version)

Dimensions：450Hx420Wx418D (mm)

Weight：28 kg

Panel material：18mm birch plywood

Painted：Black environmentally friendly water-based paint

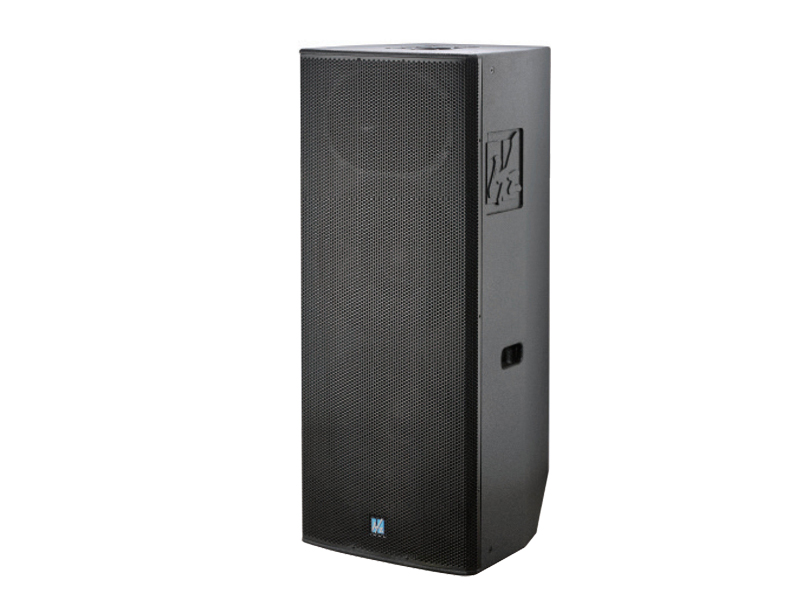

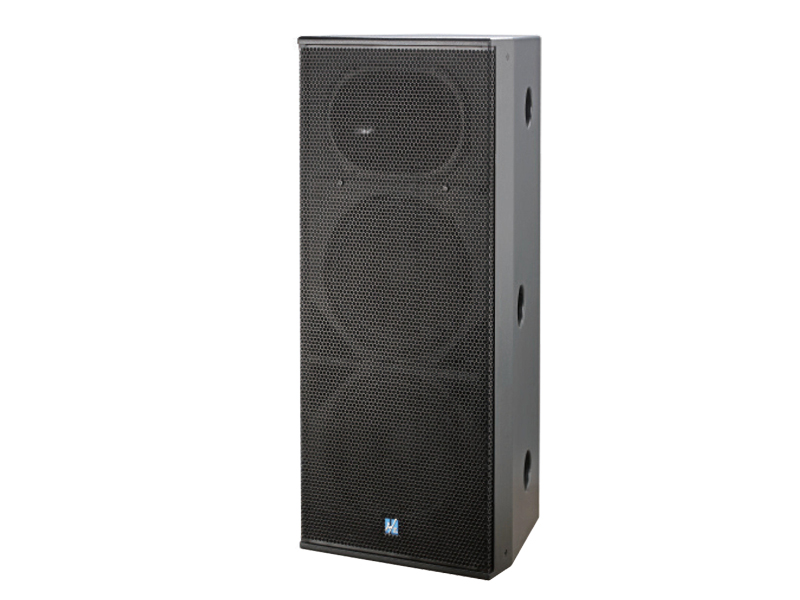

Components：Dual 15" 2-Way Full Range Speaker

Rated Power：850 W

Frequency Response：50 Hz-18 kHz

Nominal Impedance：4Ω

Sensitivity：102 dB(1W/lm)

SPL Continuous：130 dB

SPL Max lW @ Im：136 dB

Dispersion：60x40 (HxV)

Dimensions(mm)：1240x500x495 (HxWx D)

Weight：71 kg

Cabinet Material：18mm Birch Plywood

Coating：Polyurea

Components：Dual 15" 2-Way Full Range Speaker

Rated Power：900 W

Frequency Response：50 Hz-18 kHz

Nominal Impedance：4Ω

Sensitivity：102 dB(1W/lm)

SPL Continuous：132 dB

SPL Max lW @ Im：138 dB

Dispersion：60x40 (HxV)

Dimensions(mm)：1234x500x500 (HxWx D)

Weight：65 kg

Cabinet Material：15mm Birch Plywood

Coating：Polyurea

Com ponents：2-Way Full Range Speaker

Rated Power：150 W

Frequency Response：65 Hz-21 kHz

Nominallmpedance：8Ω

Sensitivity：95 dB(1W/1 m)

SPL Continuous：117 dB

SPL Max lW @ 1m：123 dB

Dispersion：NxA (HxV)

Dimensions(mm)：460x260x285(HxWxD)

Weight：12 kg

Cabinet Material：15mm Birch Plywood

Coating：Black Water Paint

Com ponents：2-Way Full Range Speaker

Rated Power：250 W

Frequency Response：65 Hz-19 kHz

Nominallmpedance：8Ω

Sensitivity：96 dB(1W/1 m)

SPL Continuous：119 dB

SPL Max lW @ 1m：125 dB

Dispersion：NxA (HxV)

Dimensions(mm)：510x350x320(HxWxD)

Weight：17.4 kg

Cabinet Material：15mm Birch Plywood

Coating：Black Water Paint

Com ponents：2-Way Full Range Speaker

Rated Power：350 W

Frequency Response：70 Hz-19 kHz

Nominallmpedance：8Ω

Sensitivity：97 dB(1W/1 m)

SPL Continuous：124 dB

SPL Max lW @ 1m：130 dB

Dispersion：NxA (HxV)

Dimensions(mm)：595x400x360(HxWxD)

Weight：26.5 kg

Cabinet Material：15mm Birch Plywood

Coating：Black Water Paint
