LS-5

Frequency response (-6 dB )                       35 Hz - 200 Hz
Maximum sound pressure (1 m, free field)          138dB
Nominal impedance             8 0hm
Power handling capacity (RMS/peak 10 ms)       1200W W
Horizontal Radiation Angle
Spread Angle Setting
vertical adjustment increment
Components                         1 x 18"diameter voice coil LF drivers
passive crossover network
input interface
Size                                      548H x 630W x 580D(mm)
Weight                                 44 kg (44 lb)
Box material                         birch plywood
surface treatment                 black polyurea paint

Frequency response (-6 dB )                       35 Hz - 200 Hz
Maximum sound pressure (1 m, free field)          138dB
Nominal impedance             8 0hm
Power handling capacity (RMS/peak 10 ms)       1200W W
Horizontal Radiation Angle
Spread Angle Setting
vertical adjustment increment
Components                         1 x 18"diameter voice coil LF drivers
passive crossover network
input interface
Size                                      548H x 630W x 580D(mm)
Weight                                 44 kg (44 lb)
Box material                         birch plywood
surface treatment                 black polyurea paint
LS-5 Subwoofer System

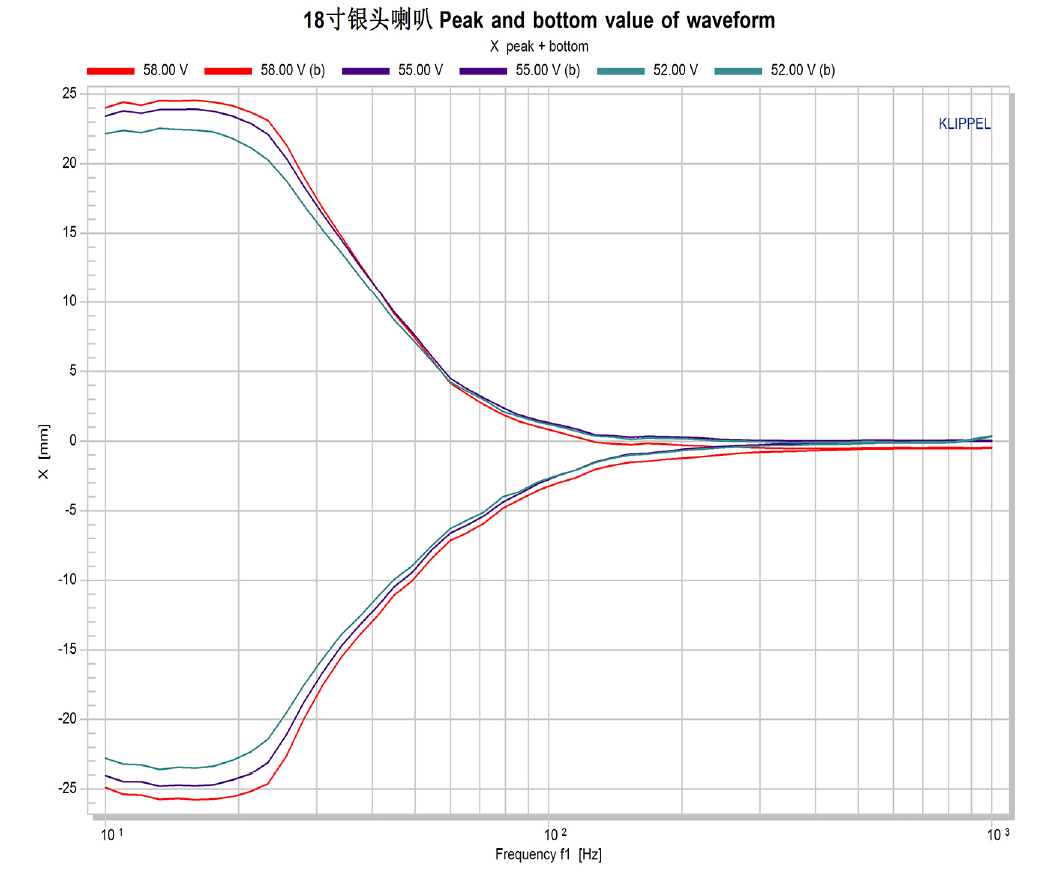

        LS-5 is a high-output compact subwoofer speaker designed to match LA-802A. It is equipped with an ultra-long excursion low-distortion 18-inch neodymium magnetic low-frequency driver with a peak-to-peak linear excursion of up t0 50mm to achieve amazing output.
        The ultra-long  offset stroke is 60% la rger than the conventional  18-inch speaker unit, and  can  push  more air under the same size cone area,  resulting  in an  unbelieva ble shock output.
        The LS-5 is a high-output compact bass-reflex subwoofer designed for touring performances, featuring an ultra-long excursion, low-distortion 18-inch neodymium low-frequency driver with up t0 50mm of peak-to-peak linear excursion for stunning output .
        The LS-5 is designed with a special connection mechanism, and the small line array speaker matched with it can be simply buckled on its surface mesh to form a very compact whole, which saves the transportation and storage space to the greatest extent. push.
