CMS-2 Multipurpose speaker

        The ideal theater speaker configuration is to use the same type of speakers for the left, center, right and surround channels to achieve consistent sound performance. However, in practical applications, due to the space environment and cost, small-sized speakers are usually used to play Surround sound channels, but the small-sized surround speakers cannot play the main channel due to power reasons, so the left, middle and right main channels can only be used for large speakers.

        In addition to watching movies, we also want to use a sound system to listen to music and sing, but most speakers cannot meet these application requirements at the same time. In addition to increasing the investment of money, adding a set of singing equipment also takes up more indoor space and affects the vision. perception.

        We hope to fulfill all those functions with small speakers, add subwoofer to further achieve perfect sound performance, and build the system in the simplest and no-technical way.



describe

        CMS-2 is designed to meet people's all-round needs.

        This high-energy coaxial speaker unit is composed of a heavy-duty magnetic circuit woofer and a 34mm compression tweeter driver with a bandwidth exceeding 20kHz, which has excellent acoustic performance. It is designed to provide unrivaled penetration and easily resist high-frequency loss caused  by transparent sound  cu rtains, thereby maintaining clarity and detail. The mid-frequency vocals are excellent, and it also has a specially designed shape and a large enough reserve power to meet the needs of surround and left, center and right channels. In addition, it also has an exciting performance of excellent microphone singing.

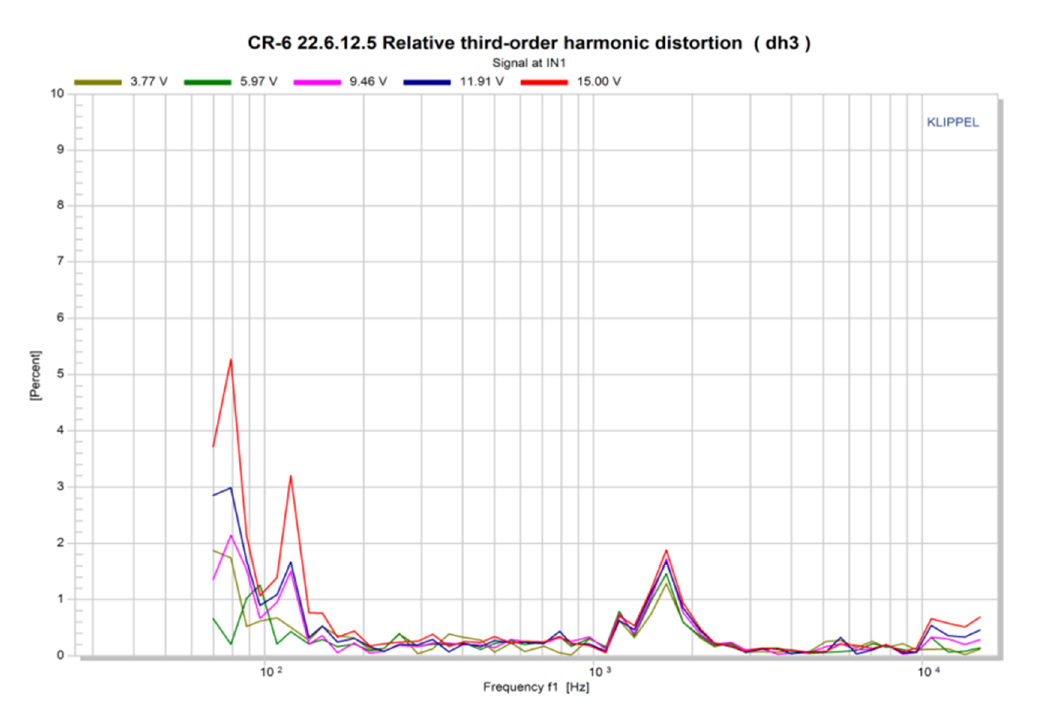

        The third harmonic distortion as low as 0.3% on average is an important guarantee for its sound quality.



application

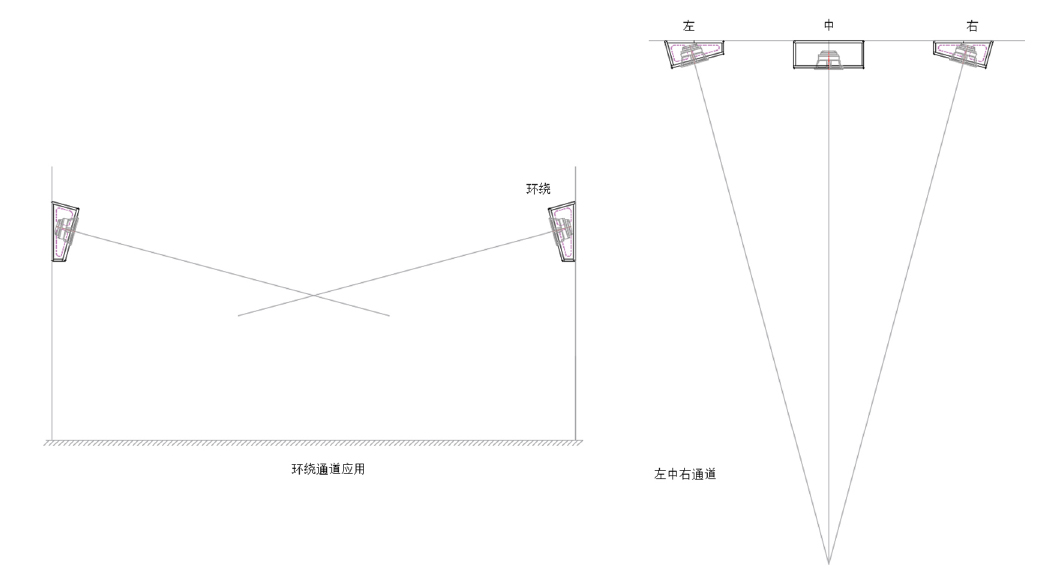

        In a room of about 2-30 square meters, it is responsible for the left, center, right main and surround channels,or in a larger room for the surround sound channels. By rotating the placement angle of the cabinet, the conversion of three different functions in the surround channel and the left, middle and right channels can be realized.

        CMS-2's full and bright sound and power handling ability also have excellent performance for background music in public commercial places such as restaurants and sound reinforcement in small meeting rooms and classrooms.
