CA-1X
Components：15"Coaxial Stage Monitor Speaker
Rated Power：500 W
Frequency Response：60 Hz-19 kHz
Nominallmpedance：8Ω
Sensitivity：99 dB (1W/lm)
SPL Continuous：126 dB
SPL Max lW @ Im：132 dB
Dispersion：50 x 70 (HxV)
Dimensions(mm)：440x600x385.5 (H xWx D)
Weight：22 kg
Cabinet Material：15mm Birch Plywood
Coating：Polyurea
CA-1F
Rated Power：500 W
Frequency Range：60 Hz-19kHz
Nominallmpedance：8Ω
Sensitivity：99 dB(1W/1m)
Calculated Output：126 dB
SPL Max：132 dB
Dispersion：90x70(HxV)
Dimensions(mm)：500x600x300 (HxWx D)
Weight：23 kg
Cabinet Material：15mm Birch Plywood
Coating：Water based paint (black)
CMS-2
Speaker type：Two-way bass-reflex speakers
Rated power：100W
Frequency response：60 Hz-19k Hz (-6dB)
Nominallmpedance：8Ω
sensitivity：93 dB (1W/1m)
SPL Continuous：114 dB
Max SPL：120 dB
Radiation angle：100 (H x V)
Size：see picture
Weight：7.5 kg
Transducers：6.5-inch woofer,34mm diaphragm compression driver coaxial unit.
Input interface：Press terminal
Cabinet material：12mmbirch plywood
Surface treatment：Black environmental protection water-based paint
CW-1
model type：Bass reflex
Power rating：450W (RMS)
Power amplifier：3000W(RMS),with DSP digital processor /4*1000W(RMS),with DSP digital processor
Frequency response：32 Hz - 150 Hz (-6dB)
Max SPL：130 dB
Transducers：1 x 12"
input interface：Gold-plated push terminals (passive version)
Dimensions：450Hx420Wx418D (mm)
Weight：28 kg
Panel material：18mm birch plywood
Painted：Black environmentally friendly water-based paint
FP4-1300+
Channels：4 Channels
8Ω Per Channel Output：4*1300 W
4Ω Per Channel Output：4*2100 W
2Ω Per Channel Output：4*2500 W
Frequency Response(1W,8Ω,+0/-1dB)：20 Hz-20 kHz
Total Ha rmonic Disto rtion(8Ω Full Power,20Hz-20KHz)：< 0.1 %
Slew Rate：40 V/us
Damping Coefficient(100Hz)600:1
Signal/Noise Ratio：110 dB
Stereo Crosstalk：>75 dB
Input Impedance：20Ω Balanced Input,10Ω Unbalanced Input
Input Gain Range：23 dB - 44 dB
High/Low Pass Range：20 Hz -20 KHz
Delay Range：0-200ms

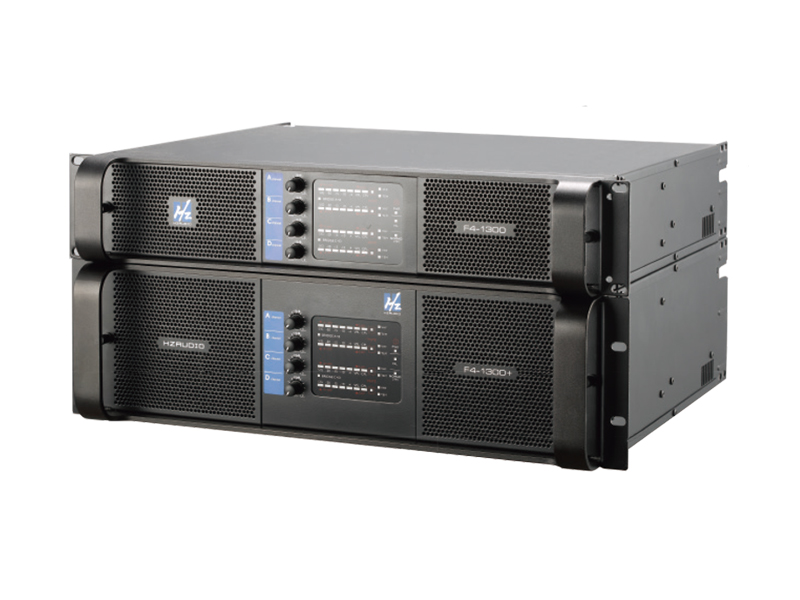

FP4-1300
Channels：4 Channels
8Ω Per Channel Output：4*1300 W
4Ω Per Channel Output：4*2100 W
2Ω Per Channel Output：4*2500 W
Frequency Response(1W,8Ω,+0/-1dB)：20 Hz-20 kHz
Total Ha rmonic Disto rtio n (8Ω Full Power,20Hz-20KHz)：< 0.1%
Slew Rate：40 V/us
Damping Coefficient(100Hz)：600:1
Signal/Noise Ratio：110 dB
Stereo Crosstalk：>75 dB
Input Impedance：20Ω Balanced Input,10Ω Unbalanced Input
Input Gain Range：23 dB - 44 dB
High/Low Pass Range：20 Hz -20 KHz
Delay Range：0-200ms
